Emergency Lights and Exit Signs

Emergency Lights

FHEM10_lrg

FHEM10 (Dual Voltage)

Low profile, thermoplastic micro emergency lighting fixture with adjustable LED lamp heads. Dual voltage operation: 120 or 277VAC. UL Listed, CEC Title 20 Compliant. Wet location model available.

Spec Sheet
Installation Instructions
IES File: PDF | IES Format
IES File (w/ High Lumen Reflector): PDF | IES Format

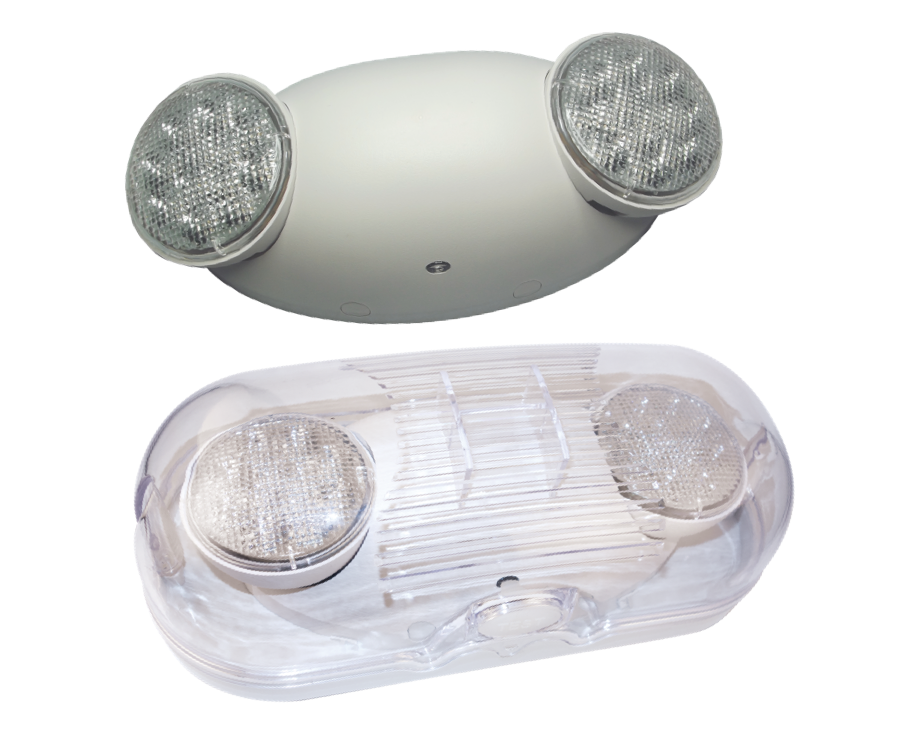

FHEM10UNV

FHEM10WHU (Universal Voltage)

Low profile, thermoplastic emergency lighting unit with adjustable LED lamp heads. Universal voltage operation: 120-277VAC. High lumen reflectors, cULus listed, wet location version available.

Spec Sheet
Installation Instructions: Standard Version | Wet Location Version
IES File : Standard Version | Wet Location Version

FHEM11_lrg



FHEM11

Contemporary, low profile, quick-installing emergency light with fully adjustable heads.

Spec Sheet
IES file (PDF)

FHEM12_lrg



FHEM12

Damp-location-rated LED emergency fixture (waterproofed variety also available). UL Listed, Dual Voltage Input (120V or 277V). Maintenance-free 3.6V NiCAD Battery, Push-to-Test Switch, adjustable glare-free LED heads, universal mounting pattern knockouts in the backplate for J-Box mounting, and “snap fit” construction for quick installation. 90 minute emergency operation.

Spec Sheet
IES file (PDF format)

FHEM13_lrg



FHEM13

Low profile, compact emergency light with fixed optics provides a consistent, predictable aiming pattern for wall or ceiling mounting.

Spec Sheet
IES file (PDF format)

SERIES HOUSING COLOR
FHEM13 W = White
B = Black

FHEM14_lrg



FHEM14

High Capacity units with larger batteries to operate additional remote lamp heads or extended emergency operation. 12 Volt units are ideal for operating remote lamps with long runs, minimizing voltage drop issues.

Spec Sheet
IES file (PDF format)

SERIES VOLTAGE OUTPUT LAMP WATTAGE
FHEM141250 12V 50W 2 x 9W
FHEM1412100 12V 100W 2 x 9W
FHEM14650 6V 50W 2 x 7.2W

FHEM15_lrg



FHEM15

Rugged, sealed and gasketed emergency units are ideal for wet or corrosive environments, providing resistance to dust, hose-downs, water spray and splashing water.

Spec Sheet
IES file (PDF)

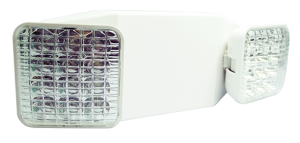

FHEM16-clear-web



FHEM16

Thermoplastic adjustable square LED head emergency lighting fixture. Dual voltage operation: 120 or 277VAC. UL listed, CEC Title 20 Compliant.

Spec Sheet
Installation Instructions
IES file (IES format)
IES Indoor Flood Report (PDF)



SERIES HOUSING COLOR OPTIONS
FHEM16 W = White
B = Black
SD= Self-Diagnostic
RC=Remote Capable

Exit Signs

For Photoluminescent (Glow-in-the Dark) exit signs, visit our Freelite page »

FHEX20_lrg_es_2



FHEX20 – Thermoplastic Micro LED

Slim profile thermoplastic LED exit sign offers long lamp life, energy efficiency and uniform illumination in an economical package. Spanish “Salida” faceplate also available (Part numbers: FHE20SFG= Green lettering, FHE20SFR= Red lettering).

Spec Sheet (English)
Spec Sheet (en español)
Installation Instructions

FHEX21_lrg_es



FHEX21 – Thermoplastic LED

Thin-profile, thermoplastic LED exit sign offers long life, energy efficiency and uniform illumination in an economical package. Spanish “Salida” faceplate also available (Select SF as option in part number).

Spec Sheet (English)
Spec Sheet (en español)
Installation Instructions
Instructions for Dual Circuit Installations

FHEX23_lrg



FHEX23 – Recessed Edge Lit

Architectural LED Edge-Lit exit signs recess into the ceiling, offering superior aesthetic appeal.

Spec Sheet
Installation Instructions

FHEX24_lrg



FHEX24 – Surface Edge Lit

Ideal for architectural applications, surface mount Edge-Lit LED exit signs offer specification-grade aesthetics with in-field installation flexibility.

Spec Sheet
Installation Instructions

FHEX26



FHEX26 – Slim Wet Location LED Exit Sign
UL 924 listed for wet location. Features a compact enclosure that is resistant to non-hazardous dust environments, corrosive atmospheres, hose-down water spray, or splashing water. Red or green lettering, remote capable.

Spec Sheet
Installation Instructions

Emergency Light / Exit Sign Combo Units

FHEC30_lrg_es



FHEC30 – Thermoplastic Micro LED

Energy-saving combination LED exit sign and emergency lighting unit in one compact, modern design. Flexibility and multi-function capabilities include LED performance on both the exit sign and the lamp heads. Spanish “Salida” faceplate also available (Part numbers: FHE30SFG= Green lettering, FHE30SFR= Red lettering).

Spec Sheet (English)
Spec Sheet (en español)
Installation Instructions
IES File: PDF | IES format
IES File (with High Lumen Reflector): IES format

FHEC31_lrg



FHEC31 – Thermoplastic Square Head Combo 5.4W T5 Wedge Base

Energy saving combination LED exit sign and emergency lighting unit provides contemporary design, flexibility and multi-function capabilities.

Spec Sheet
IES File: PDF | IES format

FHEC33-clear-web



FHEC33 – LED Exit Emergency combo unit

Dual voltage (120V/277V), UL listed, Damp location rated, 90 minute run time. Available in white or black, with red or green letters, and optional remote capability. Spanish “Salida” faceplate also available (Part numbers: FHE33SFG= Green lettering, FHE33SFR= Red lettering).

Spec Sheet
Installation Instructions
IES file (IES format)
IES Indoor Flood Report (PDF)

FHEC34



FHEC34 – Slim Wet Location Combo LED Head

UL 924 listed for wet locations. Includes two sealed and gasketed 1.17W weatherproof LED lamp heads. Features a compact enclosure that is resistant to non-hazardous dust environments, corrosive atmospheres, hose-down water spray, or splashing water. Red or green letters, remote capability option.

Spec Sheet
Installation Instructions
IES file (IES format)

FHEC35



FHEC35 – Thermoplastic Slim LED Combo Unit

Slim profile, thermoplastic LED Exit/Emergency Combo unit. Includes standard faceplate and fully adjustable LED lamp heads, all in a slender package. Spanish “Salida” faceplate also available (Part numbers: FHE33SFG= Green lettering, FHE33SFR= Red lettering).

Spec Sheet
Installation Instructions
IES file (IES format)

New York City Approved Exit Lighting & Signage

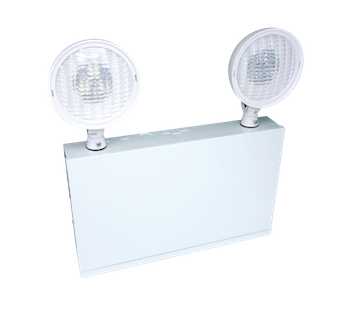

FHNY11



FHNY11
Steel emergency light with LED Heads designed for new or retrofit applications that need to meet New York City Standards. Ideal for hospitals, office buildings and schools.

Spec Sheet
Installation Instructions

FHNY20_lrg



FHNY20

8” Steel LED exit designed to New York City specifications.

Spec Sheet

FHNY23_lrg



FHNY23

8” Edge-lit exit sign designed to New York City specifications, provides superior aesthetics in a surfacemount design. Excellent LED performance and energy efficiency combined with infield installation flexibility.

Spec Sheet

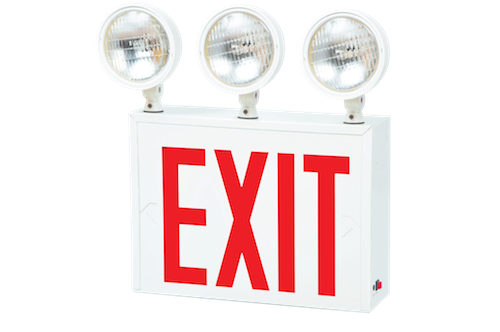

FHNY31



FHNY31

Steel New York City approved LED exit sign and emergency unit combo with LED heads. Ideal for hospitals, office buildings and schools.

Spec Sheet
Installation Instructions

Chicago Approved Exit Lighting & Signage

FHCH10_lrg



FHCH10

Steel emergency light designed for new construction or retrofit applications that must meet all City of Chicago listing requirements. Ideal for wall-mounted applications in stores, offices, hospitals and schools.

Spec Sheet

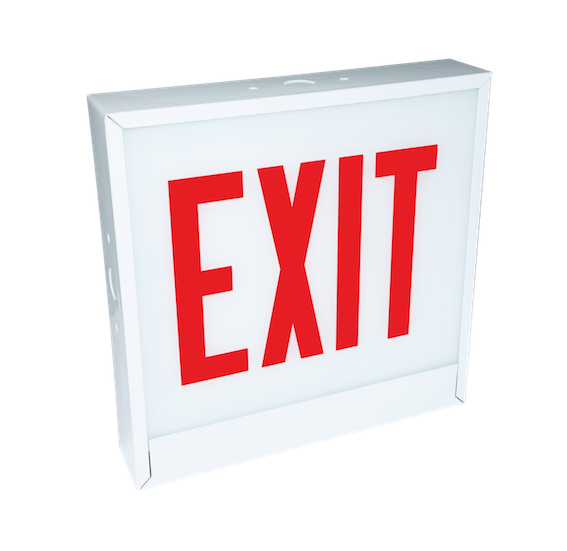

FHCH21



FHCH21

Heavy duty steel exit sign approved for use in Chicago. Ideal for applications such as schools, offices, retail and hospitals.
Part numbers for optional faceplates:
FHCHGONA = No Arrow
FHCHGORA = Right Arrow
FHCHGOLA = Left Arrow
FHCHGODA = Double Arrow
FHCHGOST = Stairs

Spec Sheet
Installation Instructions

Accessories

Model # Description Spec Sheet Link
Remote Heads
FHEM10RH13V1 1 head, 3.6V, 1.72 Watts. Compatible with FHEM16, FHEX20, FHEC33, FHEC35. Spec Sheet
FHEM10RH23V1 2 heads, 3.6V, 3.4 Watts. Compatible with FHEM16, FHEX20, FHEC33, FHEC35. Spec Sheet
FHEM11RH16V5 1 head, 6V, 5.4 Watts. Compatible with FHEM11, FHEC31. Spec Sheet
FHEM12RH13V1 1 head, 3.6V, 1.17 Watts. Compatible with FHEX20, FHEX26, FHEC30, FHEC34. Spec Sheet
FHEM12RH23V1 2 heads, 3.6V, 2.34 Watts. Compatible with FHEX20, FHEX26, FHEC30, FHEC34. Spec Sheet
FHEM15RH16V7 1 heads, 6V, 7.2 Watts. Compatible with FHEM15. Spec Sheet
FHEM15RH26V7 2 heads, 6V, 14.4 Watts. Compatible with FHEM15. Spec Sheet
FHEM16RH13V1 1 head, 3.6V, .92 Watts. Compatible with FHEM16, FHEX20, FHEC33, FHEC35. Spec Sheet
FHEM16RH23V1 2 heads, 3.6V, 1.84 Watts. Compatible with FHEM16, FHEX20, FHEC33, FHEC35. Spec Sheet
Wire Guards
FHEMWG Wire Guard for FHEM10, FHEM11, FHEM13, FHEM16, FHEX20, FHEX21, FHEX22, FHEX24 Spec Sheet
FHECWG Wire Guard for FHEC30, FHEC31, FHEC33 Spec Sheet
Vandal Shields
FHEMVS Vandal Shield for FHEM10, FHEM11, FHEM13 Spec Sheet
FHEXVS Vandal Shield for FHEX20, FHEX21, FHEX22 Spec Sheet
FHECVS Vandal Shield for FHEC30, FHEC31 Spec Sheet
Salida Faceplates
FHE30-20SFG Spanish Salida Faceplate with green lettering for FHEX20, FHEC30, FHEC33, and FHEC35. Flyer
FHE30-20SFR Spanish Salida Faceplate with red lettering for FHEX20, FHEC30, FHEC33, and FHEC35. Flyer
