DC LED Retrofit Kits (CCT Selectable)

culus-curus-rohs-ES

The next generation of efficient, easy-to-install LED retrofit kits is here. New Fulham VividHorse Retrofit Kits can provide over 150 lm/W @90CRI and are available in round and rectangular shapes to fit most standard wall- and ceiling-mounted luminaires. These cULus Classified Kits are suited for either field installation or factory retrofits and feature 0-10V dimming and CCT selectability.

  • Kits include LED engine (integrated module + driver), all necessary hardware and connectors, installation instructions, and required UL labels
  • cULus Classified (field installable)
  • ENERGY STAR® Luminaire 2.2 Listed and ENERGY STAR Certified Subcomponent Database (for rebate programs)
  • Simple installation can de done in the field in minutes
  • OEMs! Do you only require the CCT Selectable modules? Visit the spec sheets page under “LED DC Constant Current Modules” for details

Product Models »

Technical Details

Common Specifications

  • Dual channel LEDs, Dip Switch on PCB for six-level CCT selection: 2700K, 3000K, 3500K, 4000K, 4500K and 5000K. Restrictions apply, contact Fulham for details.
  • CRI 90 standard; advanced phosphor technology LEDs for superior CRI90 efficacy.
  • Operating Ambient Temperature Range (Ta): -31ºF to 140ºF (-35°C to +60°C)
  • Estimated Lumen Maintenance@ 96ºC: L70 >60,000 hours, L90 = 36,000 hours
  • Color Consistency: Binning per ANSI C78.377-2015; Typ. 3 SDCM
  • Input Surge Test: 2.5kV Common and Differential mode (Per ES Ring Wave Test)
  • Safety/Compliance: cURus (File # E351548, E342838), cULus (File # E365124), RoHS Compliant, Energy Star Luminaire 2.2 Listed and CSD
  • Warranty: 5 Years @Max Tc from date of manufacture

Brochure

thumbnail-DC-LED-kits

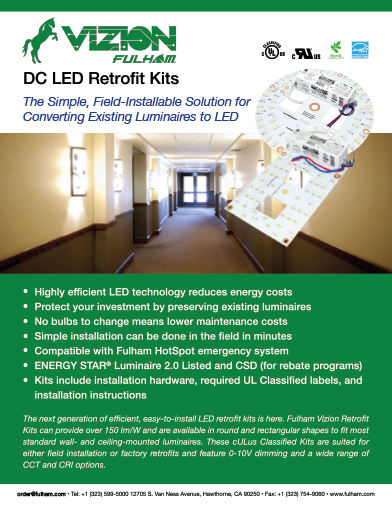

Vizion DC LED Retrofit Kits (not CCT selectable – while supplies last)

  • Download PDF
  • View Online

thumbnail-DC-LED-v3-kits

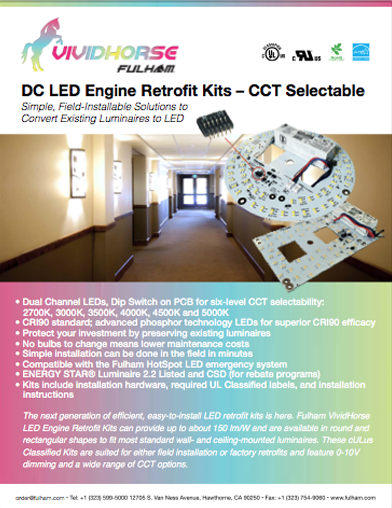

VividHorse DC LED Retrofit Kits (CCT selectable)

  • Download PDF
  • View Online

VividHorse (CCT Selectable) DC LED Retrofit Kits

Vizion (Dedicated Color Temperature) DC LED Retrofit Kits
