HotSpot Plus LED Driver & Emergency System

HotSpot Plus LED Emergency Drivers

cURus-CE-RoHS-1

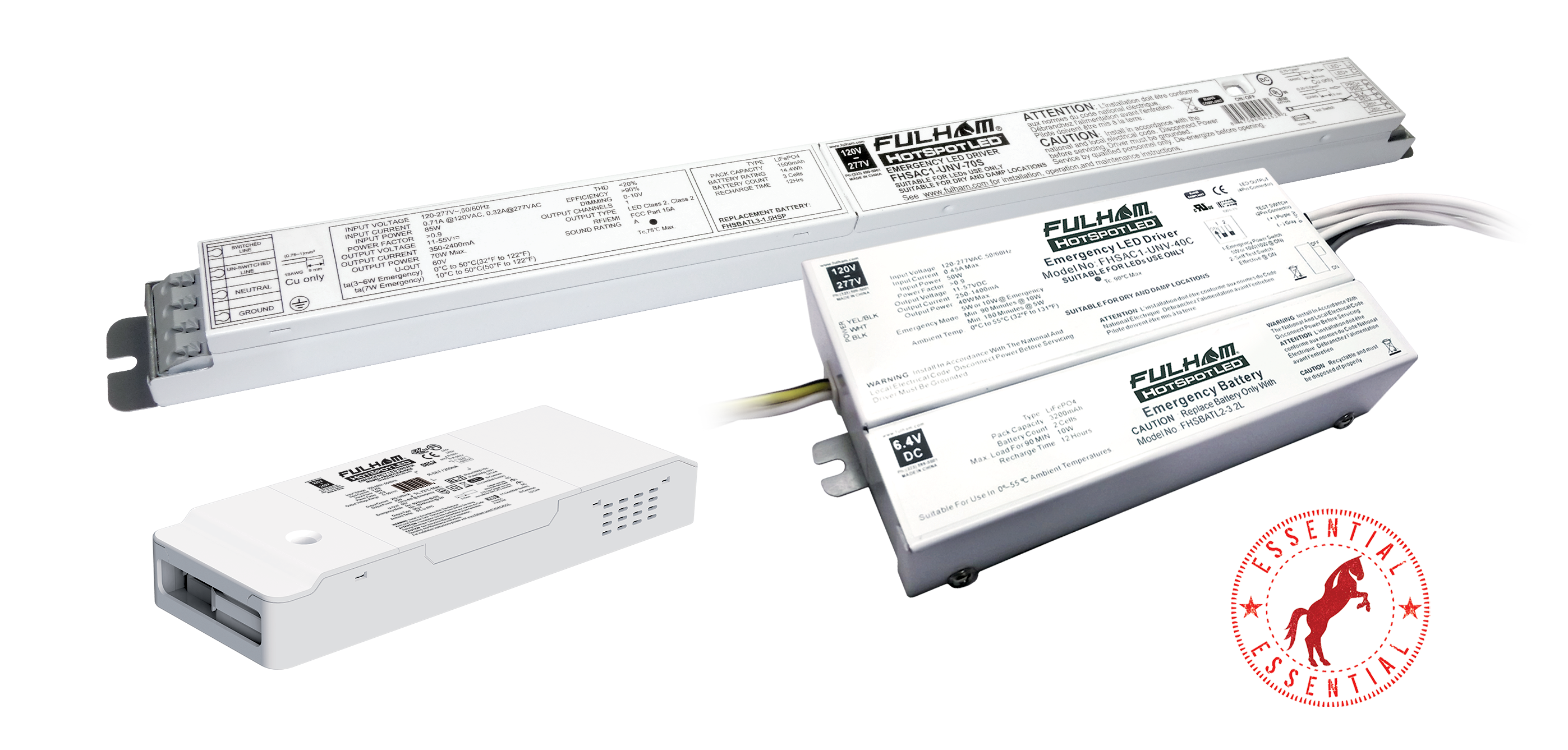

The revolutionary HotSpot Plus LED Driver & Emergency System combines the functions of a dimmable, programmable LED driver, emergency LED driver, and replaceable backup battery in a single compact unit.

Under normal conditions this all-in-one solution operates as a 40/45W constant current driver; during a power outage the integrated battery automatically activates, providing 5W of power for 180 minutes or 10W for 90 minutes*. Benefits include lower costs, simplified installation, and the ability to bring emergency LED capability to smaller luminaires.

* European version features 1W-6W emergency output; factory set for 3W for 180 min.

Product Models »

Features

  • Integrated LED Driver, emergency LED driver, and replaceable battery
  • 0-10V dimming (100%-1%)
  • Emergency power: 5W for 180 min or 10W for 90 min (user-selectable). European version: 1W-6W emergency output; factory set for 3W for 180 min.
  • Programmable output current: 250-1400mA in 1mA increments
  • Compatible with Fulham SmartSet programming platform
  • Illuminated test switch/AC power indicator
  • Switchable self-diagnostics
  • Warranty: 5 years at TC max 70°C. 3 years for -C and -BLS battery at TC max 80°C

Specifications

Specifications

  • Driver Type: Constant Current
  • Input Voltage: 100-277VAC (UNV) European Version: 220V-240V
  • Input Frequency: 50/60Hz
  • Input Current: 0.45A @ 120VAC, 0.21A @ 277VAC. European Version: 0.27A Max
  • Input Power: 54W. European version: 58W
  • Power Factor: >0.9
  • THD: <20%
  • Output Current: 250-1400mA using SmartSet Software/Controller; 250-700mA using wiring harness
  • Output Power: 40W max. (European version: 45W max.)
  • Emergency Power Output: 5W for 180 min or 10W for 90 min (user-selectable via switch)
  • Battery Type: LiFePo4 6.4 VDC (FHSBATL2-2.3L)
  • Battery Capacity: 3200mAh European version: 1500mAh
  • Recharge Time: 12 Hrs
  • Dimming Type: 0-10V, 100-1%. European version: 1-10V/Pulse; 0%, 1%-100%
  • RFI/EMI: FCC Part 15A Non-Consumer
  • Sound Rating: A
  • Output Type: Isolated, LED Class 2
  • Operating Temp Range: 0ºC – 40ºC
  • Max Case Temp: 85ºC
  • Input Surge Protection: 1kV/3kV
  • Protections: Input current, output short circuit, output open circuit, output to ground short, overload, over temperature
  • Approvals: cURus, CE, RoHS, Damp Locations

Overview Video

Guide to Programming

The SmartSet Programming Platform

TPSB-100The HotSpot Plus uses Fulham’s innovative new SmartSet programming platform, which gives the user the power to create the right driver for almost any situation.

The TPSB-100 SmartSet controller allows the user to set a number of parameters. Current, voltage, DMX address, dimming curve, LED group, terminal resistor, and lowest dimming percentage can all be customized to the user’s needs.

The TPSB-100 is powered via a USB cable that can connect either to a PC or wall power with the included adapter. The programming cable then makes a simple contact with connectors on the LED driver to transmit the desired settings. When used with a PC, Fulham’s SmartSet software provides additional programming ability.

For additional information, please see the links below:

Specs, Brochure & Software

Brochures

Flyer for HotSpot Plus LED Driver & Emergency System

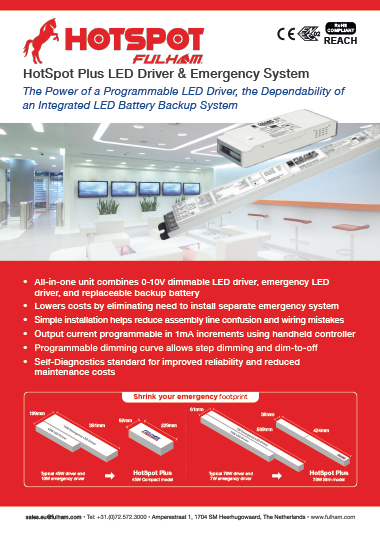

Flyer for HotSpot Plus LED Driver & Emergency System- European Version

Specification Sheets and Installation Instructions



SmartSet Programming Software
