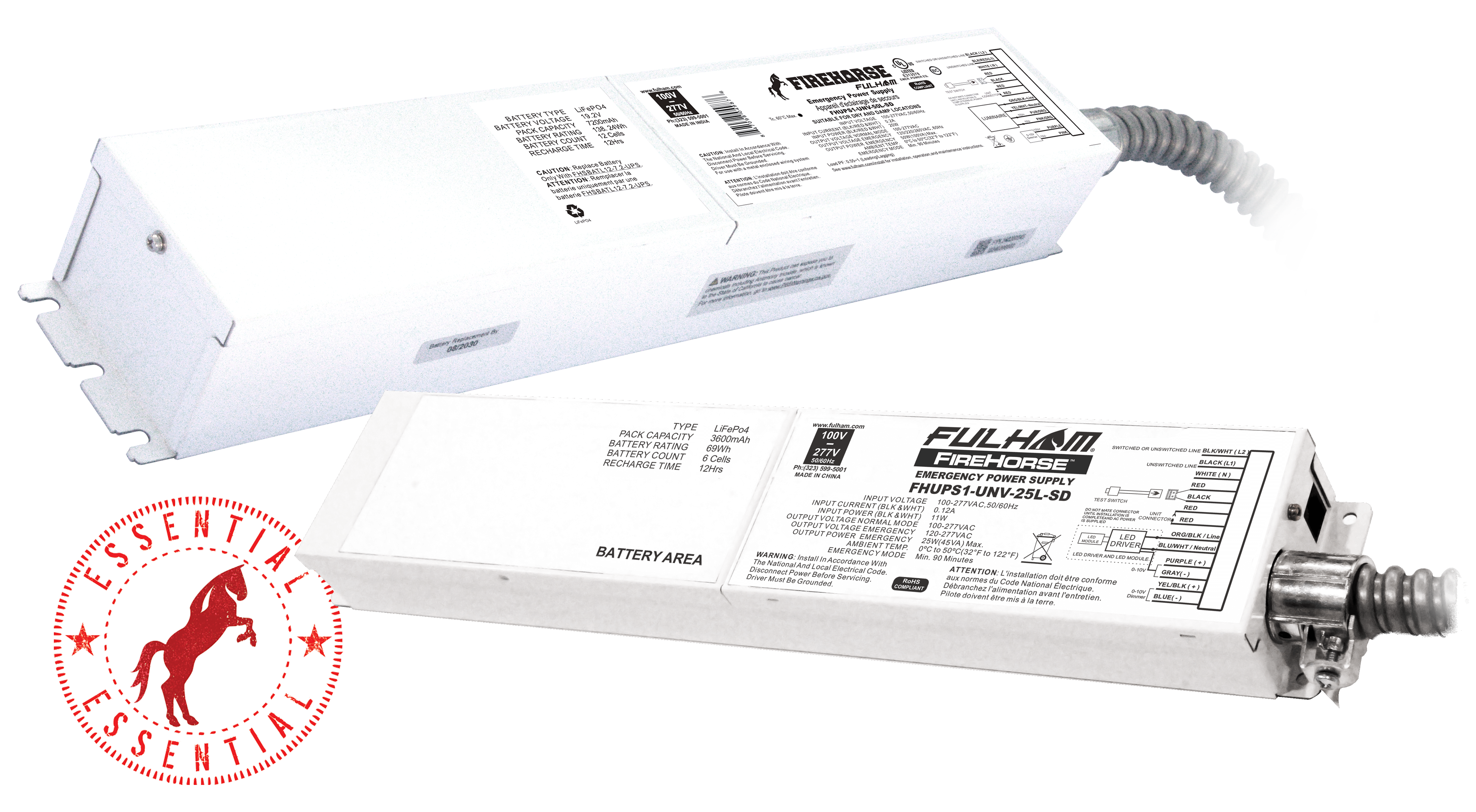

25W Micro-Inverter / Emergency Power Supply

FHR1
CE-cULus-logo

A 25 Watt Micro-Inverter / Emergency Power Supply that delivers power to any fixture in emergency mode at 25W for 90 minutes.

Saves money in two ways:

  • Can run a fixture greater than 25W, which previously required a higher cost, higher wattage inverter
  • Can run either one fixture up to 150W or multiple in a system with combined wattage of 150W in normal operation, reducing SKUs

Features

  • Easy installation time: no need to open up a luminaire to connect this device to the driver
  • Can be used with luminaires where the driver is not accessible, e.g. UFO high bays
  • Under voltage protection, short circuit protection, overload protection
  • Self diagnostic standard
  • Uninterrupted Power Supply
  • Universal input
  • UL listed and CEC Title 20 compliant
  • 120-277 VAC output
  • Dims luminaires of up to 150W down to 25W(45VA) in emergency with 0-10V dimming; 25W(45VA) max
    without 0-10V dimming
  • 25W output
  • 0 – 55°C ambient rated
  • 12hr recharge time
  • Conduit for leads
  • RJ11 port allows Bluetooth compatibility
