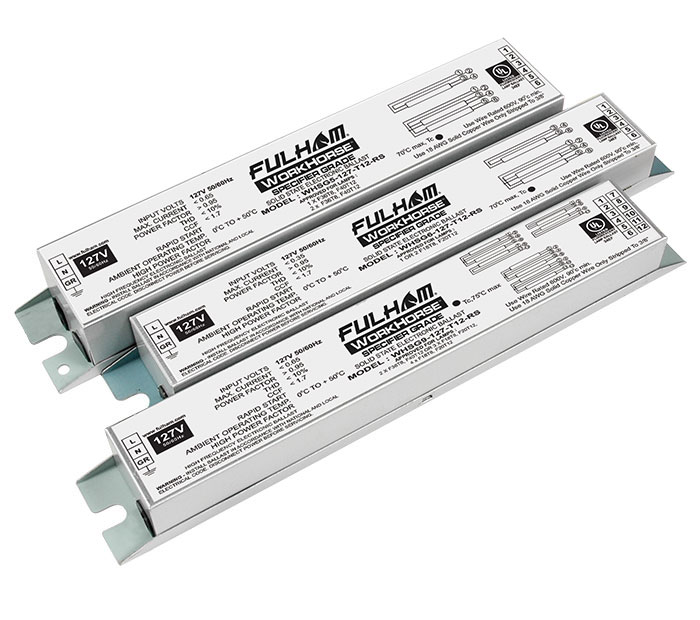

Middle-East Series Project Grade Ballasts 127/220V - MLT 120-240V

UL

Features:

  • Rapid start
  • High Power Factor ( HPF)
  • End of Life protection
  • Multiple lamp operation
  • Suitable for T8 and T12 operation
  • Solid housing and compact case

Applications:

  • Decorative Lighting
  • Indoor Architectural Lighting
  • Outdoor Architectural Lighting
  • Industrial and Commercial Lighting

Lamp Operation 127/220V »

Lamp Operation MLT 120/240V »

Lamp Operation 127/220V

Case Sizes

WHCG5-127/220 – Ballast Size (mm): 235 L x 40 W x 25.4 H
WHCG6-127/220 – Ballast Size (mm): 235 L x 40 W x 25.4 H
WHCG9-127/220 – Ballast Size (mm): 255 L x 40 W x 25.4 H

Common Specifications

Input Voltage 127V ± 10%, 50/60Hz • 220V ± 10%, 50/60Hz
Power Factor > 0.95
Efficacy Factor > 88%
THD < 10%
Current Crest Factor < 1.7
Emi/Rfi Compliance FCC PART 18-A (Non Consumer)
Sound Rating “ A “
Ballast Type Rapid Start
Voltage Transients ANSI 62.41
Min. Operating Temp 10ºC ( 14ºF )
Max. Case Temp 75ºC ( 167ºF )
Approvals/Class UL Listed, CLASS P 1 OUTDOOR

Lamp Operation MLT 120/240V

Case Sizes

WHCG5-MLT – Ballast Size (mm): 235 L x 40 W x 25.4 H
WHCG6-MLT – Ballast Size (mm): 235 L x 40 W x 25.4 H
WHCG9-MLT – Ballast Size (mm): 255 L x 40 W x 25.4 H

Common Specifications

Input Voltage 120V-240V ± 10%, 50/60Hz
Power Factor > 0.95
Efficacy Factor > 88%
THD < 10%
Current Crest Factor <1.7
Emi/Rfi Compliance FCC PART 18-A (Non Consumer)
Sound Rating “ A “
Ballast Type Rapid Start
Voltage Transients ANSI 62.41
Min. Operating Temp 10ºC ( 14ºF )
Max. Case Temp 75ºC ( 167ºF )
Approvals/Class UL Listed, CLASS P 1 OUTDOOR
