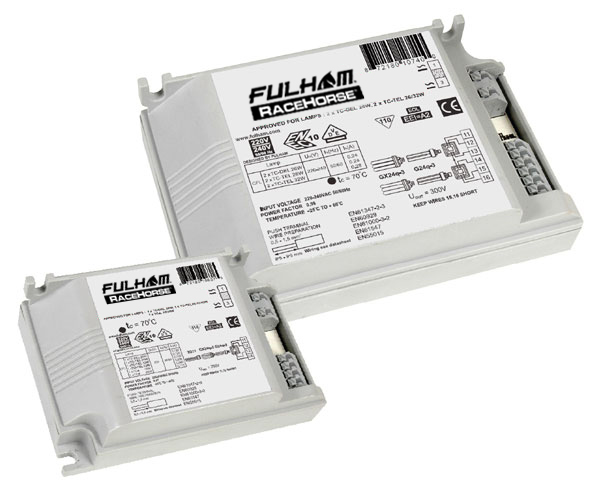

230V Fluorescent Electronic Ballasts for CFL Lamps

EuropeanLogosROHS

Applications

• Decorative Lighting
• Indoor Architectural Lighting
• Outdoor Architectural Lighting
• Industrial and Commercial Lighting
• Wall Washing and Flood Lighting

Product Models »

Technical Details

Advanced Features

  • Designed to CE requirements
  • ENEC / VDE / EMC Certified
  • Programmed Preheat Lamp Start
  • Cut-Off Technology
  • End Of Life Protection (EOL)
  • High Power Factor
  • Active Power Factor Control (APFC)
  • Auto-Restart
  • Standard distances between the mounting holes
  • Solid Housing and Electronics
  • 5 Year Warranty – 50,000 hour life

Common Specifications

  • Input Voltage: 220 – 240 VAC (±10%)
  • Power Line Frequency: 50/60 Hz
  • Overvoltage Consistency (V AC, 1h): 320
  • Power Factor – APFC (λ): ≥ 0.96
  • Line Current Harmonics: < 10%
  • Lamp Operating Frequency: > 42,000 Hz
  • Pre-Heat Lamp Start (Seconds): ≤1.5
  • Max. Case Hot Spot Temperature Tc: 70ºC
  • Ambient Temperature CFL: -25°C to +60°C T5/T8: -25°C to +50°C
  • Expected Service Life at Ta max.: 50,000 hours
  • Automatic restart after lamp change: Yes
  • Cut-Off Technology: Yes
  • End Of Life Protection (EOL): Yes
  • Case Material: CFL: Thermoplast – T5/T8: Metal
  • Immunity: EN 61547
  • Harmonic Content: EN 61000-3-2
  • Radio Interference Suppression: EN 55015
  • ENEC, VDE, CE: EN 60929:2006-03, EN 61347-1:2001+A1, EN 61347-2-3: +A1+A2

CFL Lamp Operation
