CFL Fluorescent Electronic Ballasts 120-277V 50/60 Hz

UL_CUL

Applications

  • Retail and Industrial Medium & High Bay
  • Canopy Lighting
  • Flood Lighting
  • Parking Garages
  • Gymnasiums
  • Indirect Wall Washing
  • Downlighting
  • Outdoor Architectural
  • Post Tops
  • Wall Sconces
  • Ceiling Surface Mount
  • Air Handling Spaces (BLS Models)

Product Models »

Technical Details

Common Specifications

  • Operating Voltage: 120V-277V (Universal Voltage)
  • Frequency: 50/60 Hz
  • ATHD: < 10% Meets ANSI C82.11-1993
  • Protection/Output: Open Lamp, Shorted Lamp, End-of-Life
  • Input Over Current Protection: Fuse
  • Transient Protection: C62.41 Class A 7 strikes
  • Regulatory Approvals: UL & cULus Listed Type 1 Outdoor
  • High Power Factor: > .98
  • Open Circuit Voltage: < 300 V RMS Max.
  • Ballast Min. Operating Temp.: -22° F (-30º C)
  • Lamp Starting Temp.: See Lamp Specifications
  • Warranty: 5 years @ 75ºC ballast max temp or 3 years @ 90ºC ballast max temp
  • Ballast Lamp Starting Mode: Programmed Start
  • Inherent Thermal Protection: Class P
  • Sound Rating: A
  • Remote Mounting: 18′ Maximum at -18ºC
  • Anti Arching Protection: UL Type CC
  • RHA-EMI: FCC CFR Title 47 Part 18 non-consumer
  • RH-EMI: FCC CFR Title 47 Part 18 consumer and non-consumer
  • BLS models are approved for air handling spaces

Contractor Kits

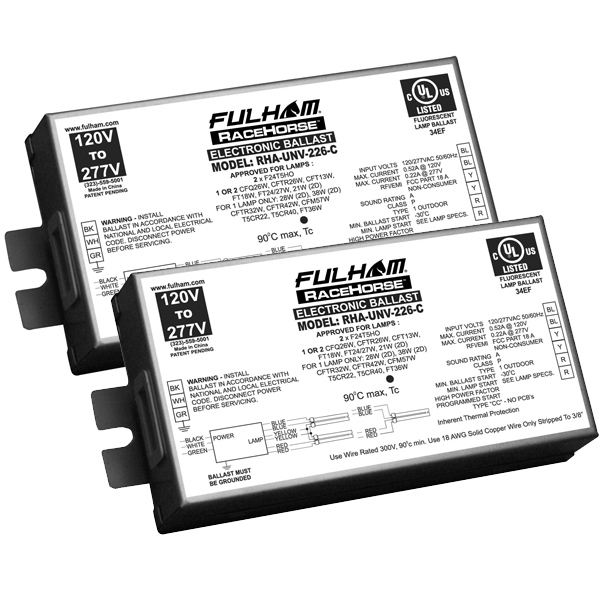

Fulham RaceHorse CFL Ballast Contractor Kit

RaceHorse CFL Ballast Contractor Kits include a RaceHorse ballast (compact case model), snap mount stud adapter plate, lead wire set, and wire removing tool.

Available Contractor Kits

Product Models

Lamp Operation
