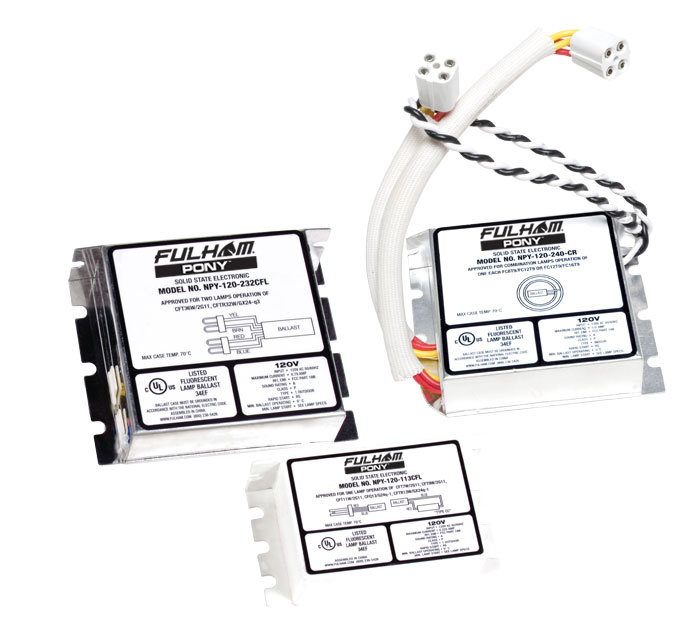

Pony Sugarcube Ballasts

Pony, the utility ballast, was created in response to customer demand for an electronic ballast to compete closely in pricing with magnetic ballast systems while providing all the benefits of electronics: flicker-free operation, greater energy efficiency, cooler running, lighter weight and small, design-friendly packages. These solid-state electronic ballasts are engineered to perform efficiently with the lamps they operate, and meet FCC Part 18-A and 18-B. Pony ballasts are applicable for under-cabinet lighting, sconces, down lights, troffers, UV, fish tanks and more.

Product Models

Technical Details

Common Specifications

  • Operating Voltage: 120VAC±10% or 230 VAC±10%
  • Frequency: 50/60Hz
  • Starting type: Rapid start
  • Starting temp: -14ºF (-10ºC)
  • Ballast Max Case Temperature: 158ºF (70ºC)
  • Transient Protection: C62.41 Class A 7 strikes
  • Regulatory Approvals: UL & cULus Listed Type 1 or Type 2
  • EMI: FCC CFR Title 47 Part 18 non-consumer
  • Sound Rating: A
  • CCF: < 1.7
  • Normal Power Factor > .5

Sugarcubes for T5, T8, T12

Sugarcubes for CFL, Circle & T8

Sugarcubes for UV Lamps

Sugarcubes for 230V Lamps (not UL listed)
