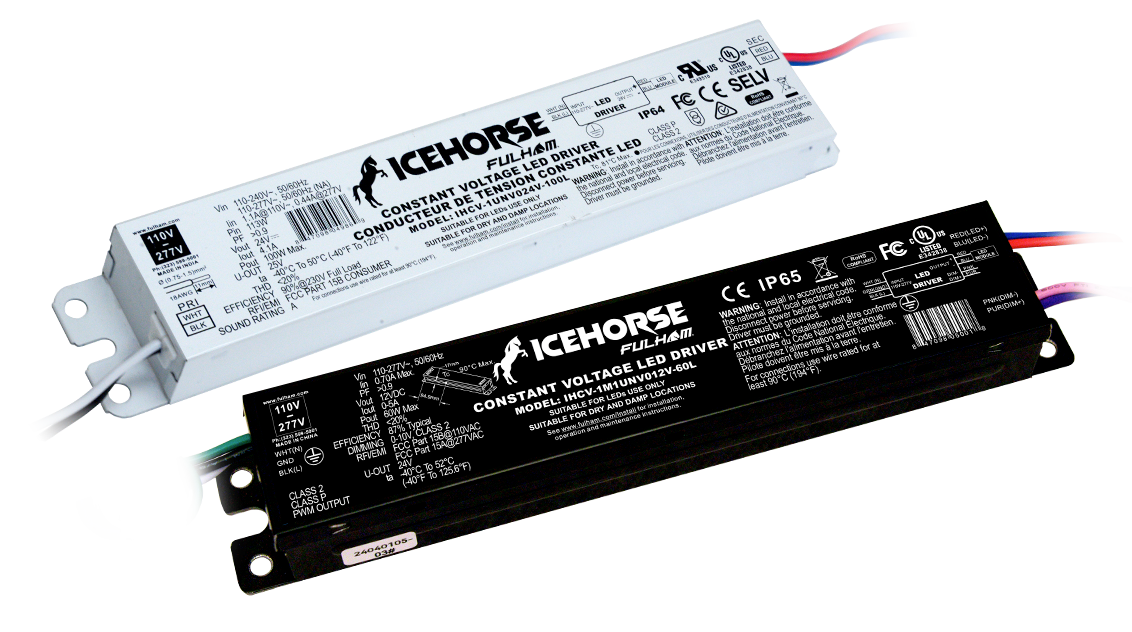

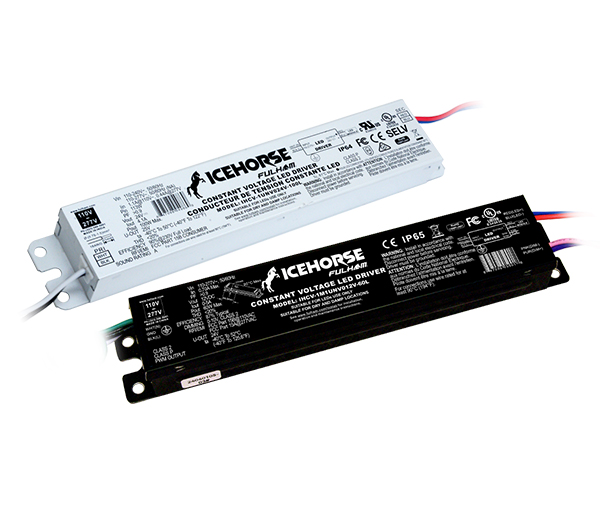

Constant Voltage LED Drivers
Features
- High Efficiency
- Reliability & Flexibility
- 12V, 24V, 30V & 48V
- 0-10V Dimming Models Available
- Low Temperature Performance
Brochures/Spec Sheets
Brochures
Specification Sheets
0-10V Dimming Models:
- T1M1UNV012V-20L
- T1M1UNV012V-60L
- T1M1UNV012V-75L
- T1M1UNV024V-20L
- T1M1UNV024V-60L
- T1M1UNV024V-75L
- T1M1UNV024V-150L
Non-Dimmable Models:
Product Models
| Model Number | Input Voltage | Frequency | Dimming Type | Output (W) | Output Volts | Output Current Max (A) | IP Rating | Dimensions (") | Dimensions (mm) | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| T1M1UNV024V-20L | 100-277V (UNV) | 50/60Hz | 0-10V | 20 | 24VDC | 0.83 | Damp | 6.3 x 1.57 x 0.98 | 160 x 40 x 25 | Spec Sheet |
| T1UNV024V-20L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 20 | 24VDC | 0.83 | 62 | 6.3 x 1.57 x 0.98 | 160 x 40 x 25 | Spec Sheet |
| T1M1UNV012V-20L | 100-277V (UNV) | 50/60Hz | 0-10V | 20 | 12VDC | 1.66 | 62 | 6.3 x 1.57 x 0.98 | 160 x 40 x 25 | Spec Sheet |
| T1UNV012V-20L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 20 | 12VDC | 1.66 | 62 | 6.3 x 1.57 x 0.98 | 160 x 40 x 25 | Spec Sheet |
| T1M1UNV024V-60L | 120-277V (UNV) | 50/60Hz | 0-10V | 60 | 24VDC | 2.50 | 64 | 8.32 x 1.69 x 1.22 | 211 x 43 x 31 | Spec Sheet |
| T1UNV024V-60L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 60 | 24VDC | 2.50 | 66 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1UNV024V-60LF | 120-277V (UNV) | 50/60Hz | Non-Dimming | 60 | 24VDC | 2.50 | 64 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1M1UNV012V-60L | 120-277V (UNV) | 50/60Hz | 0-10V | 60 | 12VDC | 5.00 | 64 | 8.32 x 1.69 x 1.22 | 211 x 43 x 31 | Spec Sheet |
| T1UNV012V-60L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 60 | 12VDC | 5.00 | 66 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1120012V-60LE | 120V | 60Hz | Non-Dimming | 60 | 12VDC | 5.00 | 64 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1UNV012V-60LF | 120-277V (UNV) | 50/60Hz | Non-Dimming | 60 | 12VDC | 5.00 | 64 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1UNV012V-60LG | 120-277V (UNV) | 50/60Hz | Non-Dimming | 60 | 12VDC | 5.00 | 68 | 9.5 x 1.7 x 1.3 | 241 x 43 x 34 | Spec Sheet |
| T1M1UNV024V-75L | 120-277V (UNV) | 50/60Hz | 0-10V | 75 | 24VDC | 3.13 | 64 | 8.32 x 1.69 x 1.22 | 211 x 43 x 31 | Spec Sheet |
| T1UNV024V-75L | 100-277V (UNV) | 50/60Hz | Non-Dimming | 75 | 24VDC | 3.13 | 64 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1M1UNV012V-75L | 120-277V (UNV) | 50/60Hz | 0-10V | 75 | 12VDC | 6.25 | 64 | 8.32 x 1.69 x 1.22 | 211 x 43 x 31 | Spec Sheet |
| T1UNV012V-75L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 75 | 12VDC | 6.25 | 64 | 9.5 x 1.7 x 1.3 | 241 x 43 x 34 | Spec Sheet |
| T1UNV024V-100LS | 120-277V (UNV) | 50/60Hz | Non-Dimming | 100 | 24VDC | 4.10 | 64 | 10.27 x 1.59 x 1.19 | 262 x 43 x 30 | Spec Sheet |
| T1UNV024V-100LE | 120-277V (UNV) | 50/60Hz | Non-Dimming | 100 | 24VDC | 4.17 | 64 | 9.5 x 1.7 x 1.2 | 241 x 43 x 30 | Spec Sheet |
| T1M1UNV024V-150L | 120-277V (UNV) | 50/60Hz | 0-10V | 150 | 24VDC | 6.25 | 67 | 8.94 x 2.66 x 1.56 | 227 x 68 x 40 | Spec Sheet |
| T1UNV024V-150L | 120-277V (UNV) | 50/60Hz | Non-Dimming | 150 | 24VDC | 6.25 | 67 | 8.94 x 2.66 x 1.56 | 227 x 68 x 40 | Spec Sheet |
