Field-Installable, Remote-Mountable Constant Power LED Emergency Drivers
Fulham’s HotSpot Constant Power emergency drivers bring field-installable backup power to LED luminaires. With the emergency driver and battery combined in a single unit, this innovative emergency system can be installed in the field in minutes. Ideal for LED flat panels, the Constant Power design guarantees the desired lumen output for emergency operation. The driver is designed for flexibility, with multiple mounting options, a conduit feed, and illuminated LED test switch. All standard models are now CEC Title 20 compliant for use in California.
To find the model that meets your lumen output requirements, try our Lumen Reference Chart.
For Programmable Constant Power Solutions for OEMs click here »
Common Specifications
- Input Voltage: UNV 120-277VAC
- Input Frequency: 50/60Hz
- Output Voltage: 20-50VDC
- Illumination time : Minimum 90 Minutes
- Recharge Time: 24 Hrs
- Ambient Temperature: 0ºC – 50ºC
- Compatible Battery Type: NiCd
- Output Type: Class 2
- Surge Protection: C62.41 (MOV)
- RFI/EMI: FCC Part 15A Non-Consumer
- Warranty: 5 Years
- CEC Title 20 compliant: Yes
Product Literature
HotSpot Constant PowerLED Emergency System(FLYER-HS-CP)

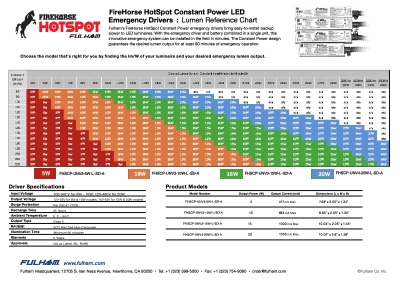

HotSpot Constant PowerLumen Reference Chart(FLYER-HS-CP)
Product Models
Constant Power Emergency Drivers with Conduit
- Multiple Constant Power Options: Available in 5W, 10W, 15W, and 20W configurations to suit diverse emergency lighting needs based on luminaire wattage or mounting heights
- Compact Design: Features smaller form factors compared to competitors, allowing for versatile and streamlined integration
- Wide Input Voltage Range: Supports 100-347VAC or 100-480VAC, providing flexibility for various installations and regions
- Self-Diagnostic Functionality: Built-in self-testing feature (with the option to disable) ensures consistent performance monitoring and compliance with safety standards
- Emergency Battery Disengage (EBD) Feature: Allows safe and efficient battery disconnection for extended shelf life
- Compliance: UL Listed, CEC title 20, RoHS, IP20, Dry/Damp location rated
