Linear High Output LED Retrofit Kits

TRMUNV065EACxxxA Canopy Retrofit Kit

Fulham’s new LinearHO LED retrofit kits are ideal for use in linear highbays, vapor tights, troffers, and other linear luminaires. The 22″ and 44″ boards are mounted in aluminum extrusions to eliminate the need for additional heatsinking, with pre-installed magnets to simplify alignment and installation. Retrofit kits include 0-10V drivers, modules, wiring harnesses, installation hardware, and UL labels, making them a simple, flexible solution for LED retrofit projects.

22″ Module Kits »
44″ Module Kits »
Modules only (non-kitted) »
Accessories »

Features

  • Universal voltage (120V-277V) with high power factor and low THD
  • cULus Classifed for field installation
  • Multiple color temperatures: 3000K, 3500K, 4000K, 5000K
  • Optional lenses and ends caps available
  • Warranty: 5 years

Specifications

Specifications

  • Input Voltage: 100-277VAC (UNV)
  • Input Frequency: 50/60Hz
  • Dimming Type/Range: 0-10V, 100-10%
  • Available Color Temperatures: 3000K, 3500K, 40000K, 5000K
  • Operating Temperature Range: -40°C to 58°C / -40°F to 136°F
  • Estimated Lumen Maintenance: L70: >60,000Hrs / L90: 40,000Hrs
  • RFI/EMI: FCC Part 15B Consumer, EN55015

Brochure

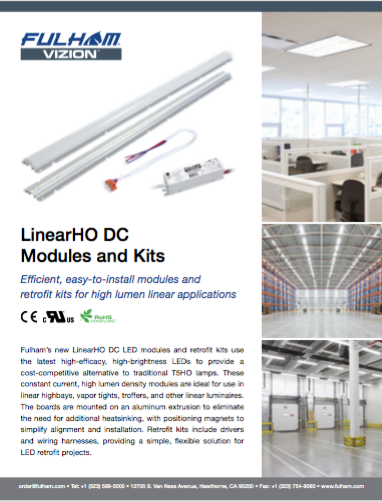

Linear HO Retrofit Kits Brochure

Linear HO thumbnail

22″ Module Kits

Values below reflect performance at 277VAC, 4000K unless otherwise specified.

44″ Module Kits

Values below reflect performance at 277VAC, 4000K unless otherwise specified.

Accessories
