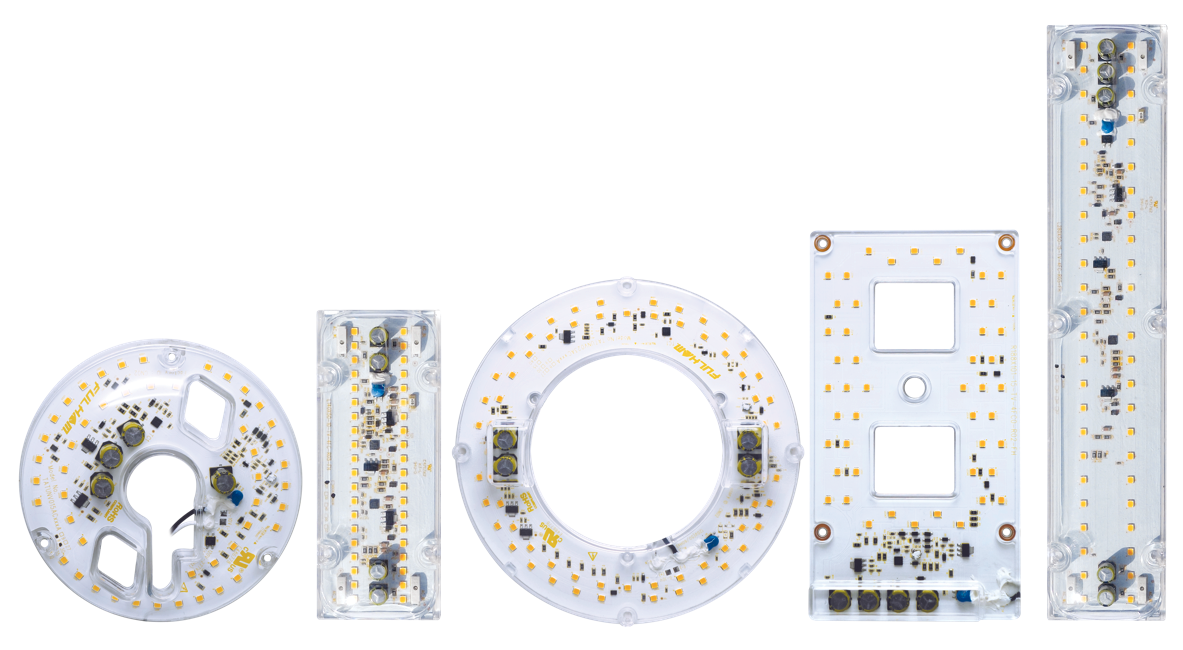

DirectAC LED Retrofit Kits

DirectAC LED Retrofit Kits provide a cost-efficient, reliable solution for wall sconces and ceiling luminaires. These innovative engines eliminate the need for an LED driver, creating a lower profile and simplifying installation. Available in either Universal Voltage or 120V versions, they feature multiple power levels, TRIAC/ELV dimming capability, a range of color temperatures, and CRI up to 90. cULus Retrofit Kits are available, with select models listed ENERGY STAR® Luminaire 2.0.

Universal Voltage Models »
120V Models »

Technical Details

Specifications

  • Input Voltage: UNV (120-277VAC) and 120VAC models; 50/60 Hz
  • Beam Angle: 120º
  • Available CRI: 80 (standard), 90
  • Available Color Temps: 2700K, 3000K, 3500K, 4000K, 5000K
  • Very low flicker, meets Title 24 requirements
  • Lens Material: Optical Grade Polycarbonate (5VA Flame rated)
  • PCB Material: MCPCB
  • Operating Ambient Temp Range: -35ºC to +50°C
  • Warranty: 5 Years
  • Compliance: RoHS, cURus, cULus, ENERGY STAR Luminaire 2.0

Videos

Product Brochures

AC-engines-thumbnail

Universal Voltage Models

AC-engines-thumbnail

120V Models

Universal Voltage Models

120V Models

wdt_ID Model Number Type Input Power (W) Max Lumens @4000K/80CRI Diameter (inches) ENERGY STAR Downloads
1 TJT120010AC8xxB Engine with lens 10 1035 3.11 No Spec Sheet
Installation Instructions
2 TJT120015AC8xxB Engine with lens 15 1575 5.08 Yes Spec Sheet
Installation Instructions
3 TJT120023AC8xxB Engine with lens 23 2300 6.97 Yes Spec Sheet
Installation Instructions
4 TJT120034AC8xxB Engine with lens 34 3465 9.55 Yes Spec Sheet
Installation Instructions
17 TJT120034AC8xxC Engine, lens, and mounting plate 34 3465 9.55 Yes Spec Sheet
Installation Instructions
31 TJT120023AC8xxC Engine, lens, and mounting plate 23 2300 9.50 Yes Spec Sheet
Installation Instructions
32 TJT120015AC8xxC Engine, lens, and mounting plate 15 1575 6.50 Yes Spec Sheet
Installation Instructions
33 TJT120010AC8xxC Engine, lens, and mounting plate 10 1035 3.50 (Square) No Spec Sheet
Installation Instructions
34 TJT120010AS8xxC Engine, lens, and mounting plate 10 1035 6.50 No Spec Sheet
Installation Instructions
35 TAT120034AC8xxA Engine only 34 3725 9.29 No Spec Sheet
