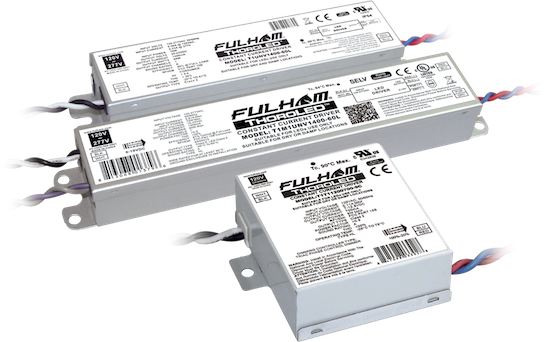

Constant Current LED Drivers

Non-Dimming Drivers

120V Constant Current Single Output

TC1 1200350-6C TC1 1200350-15C TC1 120 0700-18C
Certifications cURus cURus, CE cURus
Input Voltage 120V 120V 120V
Frequency 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1
Output Wattage 6 15 18
Output Volts 3~18VDC 24~45VDC 10~26VDC
Output Current (mA) 350 350 700
Driver Size L 2.57", W 1.8", H 1" L 65mm, W 45mm, H 25mm L 2.57", W 1.8", H 1" L 65mm, W 45mm, H 25mm L 3.2", W 2.4", H 1" L 81mm, W 61mm, H 25mm
Case Material Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC
Max. Case Temp 70ºC 75ºC 80ºC

Universal Voltage Constant Current Single Output

T1 UNV0350-60L T1 UNV0700-28C T1 UNV0700-28BL T1 UNV0700-36C T1 UNV0700-40C T1 UNV1050-42C T1 UNV1400-60L
Certifications cURus, CE cURus, CE cURus, CE UR, CE cURus, CE cURus, CE cURus, CE
Input Voltage 100-277V (UNV) 100-277V (UNV) 100-277V (UNV) 120-277V (UNV) 100-277V (UNV) 100-277V (UNV) 100-277V (UNV)
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 1 1 1 1
Output Wattage 60W 28 28 33 40 42 60
Output Volts 90-180VDC 12~40VDC 12~40VDC 26~48VDC 18~58VDC 12~40VDC 20~43VDC
Output Current (mA) 350 700 700 700 700 1050 1400
Driver Size L 7.72", W 1.69", H 1.22" L 196mm, W 43mm, H 31mm L 3.15", W 2.99", H 1.02" L 80mm, W 76mm, H 26mm L 3.15", W 2.99", H 1.06" L 80mm, W 76mm, H 27mm L 3.8", W 2.8", H 1.3" L 95mm, W 70mm, H 32mm L 3.74", W 2.76", H 1.2" L 95mm, W 70mm, H 30mm L 3.74", W 2.76", H 1.2" L 95mm, W 70mm, H 30mm L 7.72", W 1.69", H 1.18" L 196mm, W 43mm, H 30mm
Case Material Metal Metal Metal Metal Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC -30ºC -20ºC -20ºC -20ºC
Max. Case Temp 90ºC 90ºC 90ºC 85ºC 90ºC 90ºC 90ºC
Conforms to IP Rating: 64 64 64 66 64 64 64

T1 UNV1000-105L T1 UNV1000-210L T1 UNV1050-42C T1 UNV1050-200L T1 UNV1400-60L
Certifications cURus, RoHS cURus, RoHS cURus, CE cURus, RoHS cURus, CE
Input Voltage 100-277V (UNV) 100-277V (UNV) 100-277V (UNV) 100-277V (UNV) 100-277V (UNV)
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 1 1
Output Wattage 105 210 42 200 60
Output Volts 75-105VDC 150-210VDC 12~40VDC 114-190VDC 20~43VDC
Output Current (mA) 1000 1000 1050 1050 1400
Driver Size L 7.76" x W 2.56" x H 1.5" L 197mm x W 65mm x H 38mm L 7.76" x W 2.56" x H 1.5" L 197mm x W 65mm x H 38mm L 3.74", W 2.76", H 1.2" L 95mm, W 70mm, H 30mm L 8.86" x W 2.66" x H 1.56" L 225mm x W 68mm x H 40mm L 7.72", W 1.69", H 1.18" L 196mm, W 43mm, H 30mm
Case Material Metal Metal Metal Metal Metal
Min. Operating Temp -25ºC -25ºC -20ºC -25ºC -20ºC
Max. Case Temp 85ºC 90ºC 90ºC 90ºC 90ºC
Conforms to IP Rating: 65 65 64 65 64

Constant Current Multiple Outputs

TC3 MLT0350-50L TC3 120 0500-75 LA TC3 MLT0500-80L T4 2300600-120L
Certifications cURus, CE cURus cURus, CE CCC, CE
Input Voltage 120-240V 120V 120-240V 230V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 3 3 3 4
Output Wattage 50 (16.7 Max per Channel) 75 (25 Max per Channel) 80 (26.7 Max per Channel) 120
Output Volts 18~48VDC 20~50VDC 18~53VDC 32~52VDC
Output Current (mA) 350 500 500 600
Driver Size L 14.8", W 1.7", H 1" L 376mm, W 43mm, H 25.4mm L 12", W 1.34", H 1" L 305mm, W 34mm, H 25.4mm L 18", W 1.7", H 1" L 457mm, W 43mm, H 25.4mm L 8.43", W 3.46", H 1.50" L 214mm, W 88mm, H 38mm
Case Material Metal Metal Metal Metal
Min. Operating Temp -30ºC -30ºC -30ºC -20ºC
Max. Case Temp 90ºC 75ºC 90ºC 90ºC
Conforms to IP Rating: 62 62 62 67

TRIAC Dimming Constant Current

TCD1 1200350-11C TCD1 1200650-18C TCD1 1200700-9C T1T1 1200700-9C T1T1 1200700-18C T1T1 1201000-20C
Certifications cURus cURus cURus cURus, CE cURus cURus
Input Voltage 120V 120V 120V 120V 120V 120V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 1 1 1
Output Wattage 11 18 9 9 18 20
Output Volts 12~32VDC 12~27VDC 6~13VDC 7~12.8VDC 17~26VDC 11~20VDC
Output Current (mA) 350 650 700 700 700 1000
Driver Size L 3.2", W 2.8", H 1" L 81mm, W 71mm, H 25mm L 3.2", W 2.4", H 1" L 81mm, W 61mm, H 25mm L 3.15", W 1.8", H 1.01" L 80mm, W 46mm, H 25.7mm L 3.2", W 2.83", H 1" L 81.4mm, W 71.9mm, H 25.4mm L 3.2", W 2.83", H 1" L 81.4mm, W 71.9mm, H 25.4mm L 4.18", W 2.21", H 1.4" L 106mm, W 56mm, H 29mm
Case Material Metal Metal Metal Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC -25ºC -25ºC -20ºC
Max. Case Temp 87ºC 82ºC 75ºC 90ºC 90ºC 86ºC
Dimming Type Triac Phase Control
Dimmer Switch
Triac Phase Control
Dimmer Switch
Triac Phase Control
Dimmer Switch
Triac Phase Control
Dimmer Switch
Triac Phase Control
Dimmer Switch
Triac Phase Control
Dimmer Switch
Dimming Range 100% - 25% 100% - 10% 100% - 10% 100% - 20% 100% - 25% 100% - 10%
Conforms to IP Rating: 62 62 62 62 62 62

T1T1 1200350-15L T1T1 1200700-9C T1T1 1200700-18C T1T1 1200700-18CA T1T1 1200700-30C T1T1 1200700-30L T1T1 1201000-20C
Certifications cURus cURus, CE cURus cURus cURus cURus cURus
Input Voltage 120V 120V 120V 120V 120V 120V 120V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 1 1 1 1
Output Wattage 15 9 18 18 30 30 20
Output Volts 20~42VDC 7~12.8VDC 17~26VDC 13-26VDC 21-42VDC 21-42VDC 11~20VDC
Output Current (mA) 350 700 700 700 700 700 1000
Driver Size L 3.9", W 1.2", H.9" L 100mm, W 30mm, H 23mm L 3.2", W 2.83", H 1" L 81.4mm, W 71.9mm, H 25.4mm L 3.2", W 2.83", H 1" L 81.4mm, W 71.9mm, H 25.4mm L 3.2", W 2.83", H 1" L 81.4mm, W 71.9mm, H 25.4mm L 3.35", W 2.56", H 0.75" L 85mm x W 65mm x H 19mm L 4.65" x W 1.18" x H 1.16" L 118mm x W 30mm x H 29.5mm L 4.18", W 2.21", H 1.4" L 106mm, W 56mm, H 29mm
Case Material Metal Metal Metal Metal Metal Metal Metal
Min. Operating Temp -40ºC -25ºC -25ºC -40ºC -40ºC -40ºC -20ºC
Max. Case Temp 88ºC 90ºC 90ºC 85ºC 84°C 80ºC 86ºC
Dimming Type TRIAC TRIAC TRIAC TRIAC TRIAC TRIAC TRIAC
Dimming Range 100% - 10% 100% - 20% 100% - 25% 100% - 10% 100% - 10% 100% - 10% 100% - 10%
Conforms to IP Rating: 64 62 62 64 64 64 62

0-10V Dimmable

0-10V Dimming Constant Current Single Output

T1M1 UNV0700-28BL T1M1 UNV0350-15F T1M1 UNV0350-15L T1M1 UNV0700-30F T1M1 UNV0700-30L T1M1 UNV0700-40C T1M1 UNV0700-40V
Certifications cURus, CE cURus, CE, RoHS cURus, CE, RoHS, SELV cURus, CE, RoHS cURus, CE, RoHS, SELV cURus, CE cURus, CE
Input Voltage 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV)
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 1 1 1 1 (plus 1 12V aux channel)
Output Wattage 28 15 15 30 30 42 41
Output Volts 12~40VDC 21-42VDC 21-42VDC 21-42VDC 21-42VDC 18~58VDC 18~58VDC
Output Current (mA) 700 350 350 700 700 700 700
Driver Size L 3.15", W 2.99", H 1.02" L 80mm, W 76mm, H 26mm L 3.19" x W 2.83" x H 0.98" L 81mm x W 72mm x H 25mm L 3.94" x W 1.18" x H .91" L 100mm x W 30mm x H 23mm L 3.19" x W 2.83" x H 0.98" L 81mm x W 72mm x H 25mm L 4.65" x W 1.18" x H 1.16" L 118mm x W 30mm x H 30mm L 4.72", W 2.69", H 1.18" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.18" L 120mm, W 68.4mm, H 30mm
Case Material Metal Metal Metal Metal Metal Metal Metal
Min. Operating Temp -20ºC -40ºC -40ºC -40ºC -40ºC -20ºC -20ºC
Max. Case Temp 90ºC 90ºC 90ºC 90ºC 86ºC 90ºC 90ºC
Dimming Type 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Dimming Range 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10%
Conforms to IP Rating: 64 64 64 64 64 64 64
This model has Studs with Back Leads
T1M1 UNV0700-28BL T1M1 UNV0700-40C T1M1 UNV0700-40V T1M1 UNV0800-100A T1M1 UNV1050-42C T1M1 UNV1050-42V T1M1 UNV1400-60L
Certifications cURus, CE cURus, CE cURus, CE cURus, CE cURus, CE cURus, CE cURus, CE UL Class P
Input Voltage 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV)
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 1 1 1 (plus 1 12V aux channel) 1 1 1 (plus 1 12V aux channel) 1
Output Wattage 28 42 41 100 42 42 60
Output Volts 12~40VDC 18~58VDC 18~58VDC 70~150VDC 12~40VDC 12~40VDC 18~42VDC
Output Current (mA) 700 700 700 800 1050 1050 1400
Driver Size L 3.15", W 2.99", H 1.02" L 80mm, W 76mm, H 26mm L 4.72", W 2.69", H 1.18" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.18" L 120mm, W 68.4mm, H 30mm L 8.44.72", W 1.97", H 1.3" L 203mm, W 50mm, H 33mm L 4.72", W 2.69", H 1.18" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.22" L 120mm, W 68.4mm, H 31mm L 9.49", W 1.7", H 1.2" L 241mm, W 43.2mm, H 30.5mm
Case Material Metal Metal Metal N/A Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC -20ºC -20ºC -20ºC -40ºC
Max. Case Temp 90ºC 90ºC 90ºC 84ºC 90ºC 90ºC 60ºC
Dimming Type 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Dimming Range 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10% 100% - 10%
Conforms to IP Rating: 64 64 64 N/A 64 64 64
This model has Studs with Back Leads

347V 0-10V Dimming Constant Current Single Output

T1M1 3470650-28C T1M1 3470700-28C T1M1 3470700-28V T1M1 3470700-40C T1M1 3470700-40V
Certifications cURus, CE cURus, CE cURus, CE cURus, CE cURus, CE
Input Voltage 347V 347V 347V 347V 347V
Frequency 60Hz 60Hz 60Hz 60Hz 60Hz
Number of Channels 1 1 1 1 1
Output Wattage 28 28 28 40 40
Output Volts 18~42VDC 18~40VDC 18~40VDC 18~57VDC 18~57VDC
Output Current (mA) 650 700 700 700 700
Driver Size L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm
Case Material Metal Metal Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC -20ºC -20ºC
Max. Case Temp 90ºC 90ºC 90ºC 90ºC 90ºC
Dimming Type 0-10V 0-10V 0-10V 0-10V 0-10V
Dimming Range 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output
Conforms to IP Rating: 64 64 64 64 64
T1M1 34700850-40C T1M1 3470950-40C T1M1 3471050-40C
Certifications cURus cURus cURus
Input Voltage 347V 347V 347V
Frequency 60Hz 60Hz 60Hz
Number of Channels 1 1 1
Output Wattage 40 40 40
Output Volts 18~47VDC 18~42VDC 18~38VDC
Output Current (mA) 850 950 1050
Driver Size L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm L 4.72", W 2.69", H 1.2" L 120mm, W 68.4mm, H 30mm
Case Material Metal Metal Metal
Min. Operating Temp -20ºC -20ºC -20ºC
Max. Case Temp 90ºC 90ºC 90ºC
Dimming Type 0-10V 0-10V 0-10V
Dimming Range 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output 0-1V= Off; 9-10V= Full Output
Conforms to IP Rating: 64 64 64



0-10V Dimming Constant Current Multiple Outputs

TCD4 UNV0300-34 L TCD4 UNV0350-39 L TCD4 UNV0350-56L TCD4 UNV0385-42 L T1M2 UNV0600-36L T1M2 UNV0700-49L
Certifications cURus cURus cURus, CE cURus cURus, CE cURus
Input Voltage 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV) 120-277V (UNV)
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Number of Channels 4 4 4 4 2 2
Output Wattage 34 39 56 42 36 49
Output Volts 15~27VDC 15~27VDC 15~40VDC 22~27VDC 23~30VDC 10~35VDC
Output Current 300 350 350 385 600 700
Driver Size L 9.5", W 1.7", H 1.2" L 241mm, W 43mm, H 30mm L 9.5", W 1.7", H 1.2" L 241mm, W 43mm, H 30mm L 9.5", W 1.7", H 1.2" L 241mm, W 43mm, H 30.5mm L 9.5", W 1.7", H 1.2" L 241mm, W 43mm, H 30mm L 11.9", W 1.5", H 1.2" L 302mm, W 38mm, H 31mm L 10.28", W 1.57", H 1.2" L 261mm, W 40mm, H 30.5mm
Case Material Metal Metal Metal Metal Metal Metal
Min. Operating Temp 0ºC 0ºC -20ºC 0ºC -20ºC -20ºC
Max. Case Temp 70ºC 70ºC 90ºC 70ºC 85ºC 75ºC
Dimming Type 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Dimming Range 0-1V=Off;
9-10V= Full Output
0-1V=Off;
9-10V= Full Output
0-1V=Off;
9-10V= Full Output
0-1V=Off;
9-10V= Full Output
0-1V=Off;
9-10V= Full Output
0-1V=Off;
9-10V= Full Output
Conforms to IP Rating: 64
