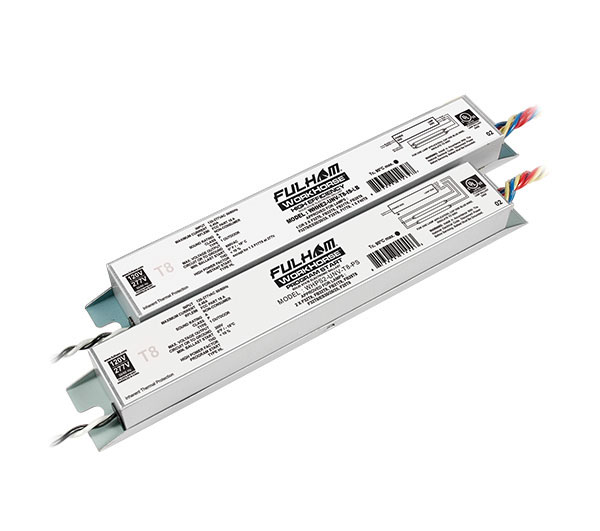

High Efficiency and Program Start T8 Electronic Ballasts

Features:
  • WHHE: Instant Start
  • WHPS: Program Start for Long Lamp Life
  • High Efficiency
  • Multiple Lamp Operation
  • WHHE: CEE Qualified
Applications:
  • Decorative Lighting
  • Indoor Architectural Lighting
  • Outdoor Architectural Lighting
  • Commercial and Industrial Lighting

Product Models »

T8/T12 Lamp Operation »

Technical Details

Common Specifications

  • Operating Voltage: WHHE: 120-277VAC, WHPS: 120-277VAC ± 10%
  • Frequency: 50/60Hz
  • Power Factor: WHHE: 98%, WHPS: 98.6% Min
  • ATHD: ≤10%
  • EMI: FCC CFR Title 47 Part 18 non-consumer
  • Ballast Factor: >.93
  • Lamp CF: <1.7
  • Ballast Max Case Temp.: WHHE: 194ºF (90ºC), WHPS: 158ºF (70ºC)
  • Ballast Lamp Starting Mode: WHHE: Instant Start, WHPS: Program Start
  • Min. Operating Temp.: 0°F (-18ºC)
  • Inherent Thermal Protection: Class P
  • Ballast Size: H 1.05″, W 1.32″, L 8.91″ (H 26.7mm, W 33.5mm, L 226.3mm)
  • Sound Rating: A
  • Regulatory Approvals: UL & cULus Listed Type1 or Type 2 Type HL, CC
